Model Type:SLC500
Model Number:1746-NI4A
Manufacturer:Allen-Bradley
Channels:4 (Input)
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)
Input Range:-20 To 20 MA
Absolute Input Current:-30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (DC):-10 To 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

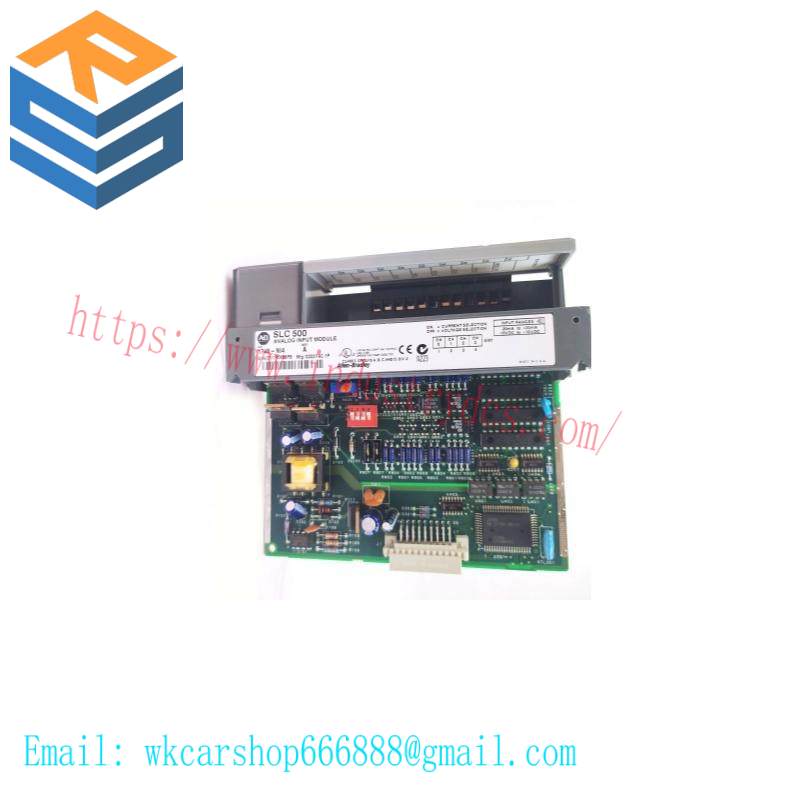

Experience unparalleled precision in data acquisition with the AB 1746-NI4A Analog Input Module from Allen Bradley. Designed for industrial automation, this module ensures reliable signal conversion and transmission, making it ideal for a wide range of applications requiring accurate sensor data.
Featuring a robust common mode voltage range and absolute input voltage capabilities, the 1746-NI4A can handle diverse electrical environments without compromising performance. Its versatile input range (-20 to 20 MA) and current rating allow for compatibility with various sensors and devices.
The module boasts high isolation levels, providing protection against backplane voltage fluctuations and ensuring a secure connection. With its open-type enclosure, it offers flexibility in installation and integration within existing systems.
Equipped with advanced features like overvoltage protection and a backplane current draw, the AB 1746-NI4A ensures operational safety and efficiency. It is compatible with ControlNet, DeviceNet, and Universal Remote I/O links, enhancing its applicability across different automation networks.
Backed by Allen Bradley’s commitment to quality and innovation, the 1746-NI4A Analog Input Module is an indispensable component for enhancing the accuracy and reliability of industrial control systems. Invest in this module to elevate your automation processes today.
