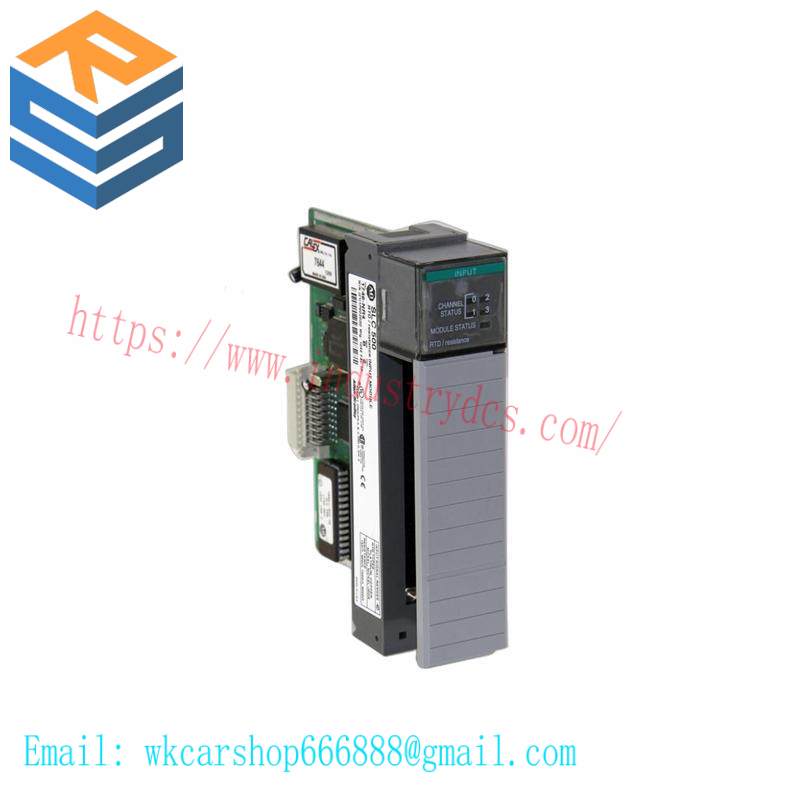

AB 1746-NR4: Industrial Analog Output Module for Precision Control

Type:Analog Output

Model:1746-NR4

Manufacturer:Allen-Bradley

Channels:4

Common Mode Voltage Range:-20 to +20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS

Input Range:-20 to +20 mA

Absolute Input Current:-30 to +30 mA

Voltage Rating:Overvoltage protection up to 7.5 VAC RMS

Input Range for 1 LSB:-10 to +10 VDC

Current Rating:Backplane current draw: 35 mA at 5 V, 85 mA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

    The AB 1746-NR4 Analog Output Module is engineered for precision and reliability in demanding industrial environments.

    Each channel offers a high-resolution output, ensuring accurate control over processes and systems.

    With a wide common mode voltage range, it can handle various industrial signals seamlessly, making it suitable for a broad spectrum of applications.

    Featuring robust overvoltage protection, the module safeguards against electrical surges, guaranteeing system uptime and safety.

    Its open-type enclosure design allows for flexible installation options, accommodating diverse industrial setups without compromising on functionality or performance.

    Operable across a wide temperature range (-40°C to +70°C) and humidity conditions (5% to 95% non-condensing), the AB 1746-NR4 is built to withstand harsh industrial environments.
