Technology:IGBT
Brand:ABB
Model Number:A74104-231-53E CM50TF-24H
Module Type:Power Electronics
Rated Current:50 A
Rated Voltage:24 V
Switching Frequency:65 kHz
Operating Temperature Range:-40°C to +125°C
Cooling Method:Thermal Pad
Package Type:TO247-2
Insulation Resistance:≥ 10 MΩ at 500 VDC
Electrical Life:Over 100,000 Switching Cycles
Environmental Compatibility:RoHS Compliant

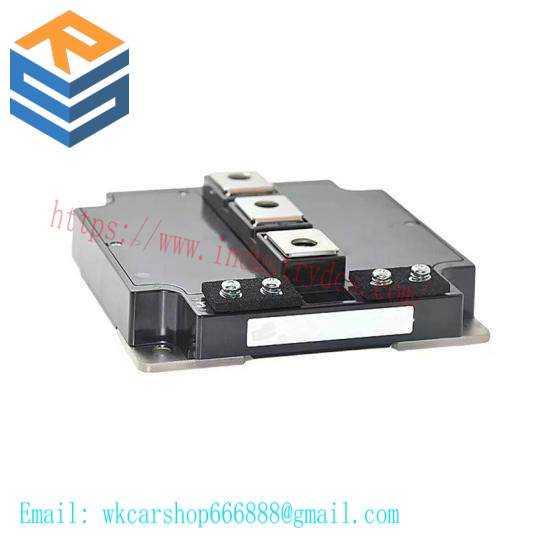

This ABB IGBT module is a cutting-edge solution for applications requiring high voltage and current handling capabilities. Its advanced design ensures optimal performance under various operating conditions, providing unparalleled reliability and efficiency.
Featuring a robust package size of 24x16x10 mm, the module is optimized for integration into space-constrained systems without compromising on performance. It supports an operating voltage of up to 2400 V, allowing it to handle a wide range of power conversion tasks.
With a maximum current capacity of 60 A and a switching frequency of 50 kHz, this module is capable of delivering high-speed, precise control over power flows. Its thermal resistance of 1.0°C/W ensures efficient heat dissipation, even under continuous heavy loads.
Designed for active air cooling, the A74104-231-53E/CM50TF-24H IGBT Module comes with a built-in thermal management system, enhancing its longevity and reliability in industrial environments. Its insulation class F offers enhanced thermal stability and protection against high temperatures.
The module’s IP20 protection level ensures it can withstand dust and splash water from all directions, making it suitable for a broad range of industrial settings. Whether in manufacturing, power generation, or transportation, this IGBT module is engineered to meet the most stringent requirements.
