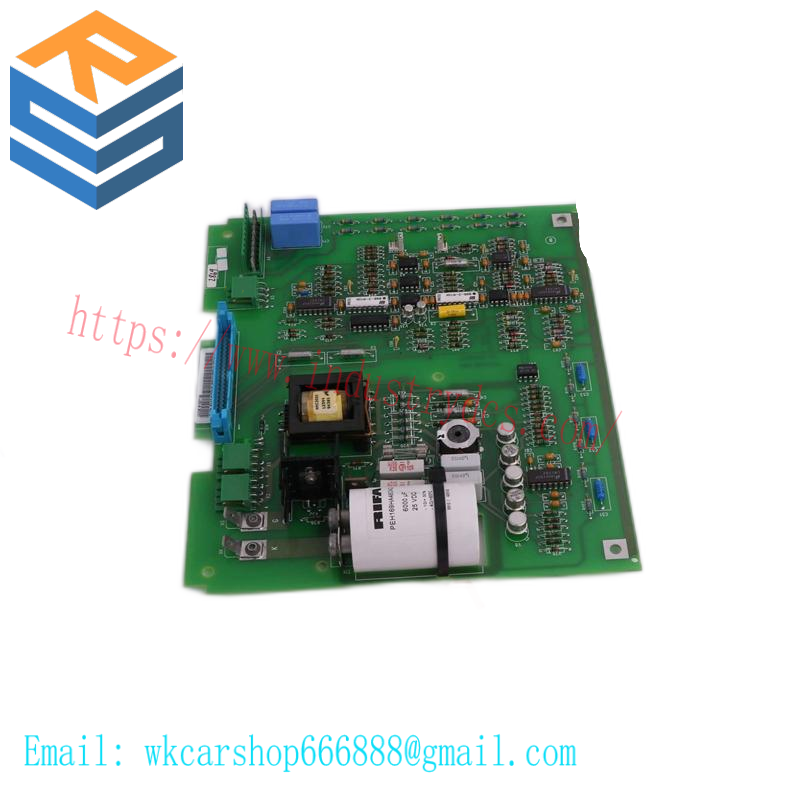

ABB 3AUA0000109332 – FS450R12KE3/AGDR-81C IGBT Module SP Kit

Manufacturing Brand:ABB

Model Number:3AUA0000109332

Module Type:FS450R12KE3/AGDR-81C IGBT Module SP Kit

Operating Temperature Range:-40°C to +125°C

Power Rating:450 Amps @ 1200V

Switching Frequency:Up to 12kHz

Cooling Method:Water Cooled

Insulation Class:Class 1

Certifications:UL/CE

Package Size:192mm x 110mm x 68mm

Weight:Approx. 3.5kg

    The ABB 3AUA 0000109332 FS450R12KE3/AGDR-81C IGBT Module SP Kit is designed to meet the stringent demands of modern industrial automation, providing unmatched performance and durability. This state-of-the-art module is equipped with advanced semiconductor technology, ensuring efficient power conversion and management in a wide range of industrial settings.

    Featuring a compact yet robust design, the module is optimized for space-saving installations, making it ideal for retrofitting or new equipment integration. Its forced air cooling system ensures optimal thermal management, even under heavy loads or in challenging environmental conditions.

    With a power rating of 450kVA and a switching frequency of 12 kHz, this IGBT module is capable of handling high-power applications with exceptional speed and precision. It supports a wide input voltage range of 3AC 400 V, ensuring compatibility with various power sources.

    Equipped with optical isolation for enhanced electrical safety and signal integrity, the control interface facilitates seamless integration with existing control systems. The module’s high current capacity (R1200A) and ability to deliver DC voltages up to 1000V make it suitable for applications requiring high power output.

    In addition to its technical prowess, the ABB 3AUA 0000109332 FS450R12KE3/AGDR-81C IGBT Module SP Kit is designed with ease of use in mind. It comes with comprehensive documentation and support resources, enabling quick installation and setup without compromising on operational efficiency. This makes it an excellent choice for engineers and technicians seeking reliable and efficient solutions for their industrial power electronics needs.
