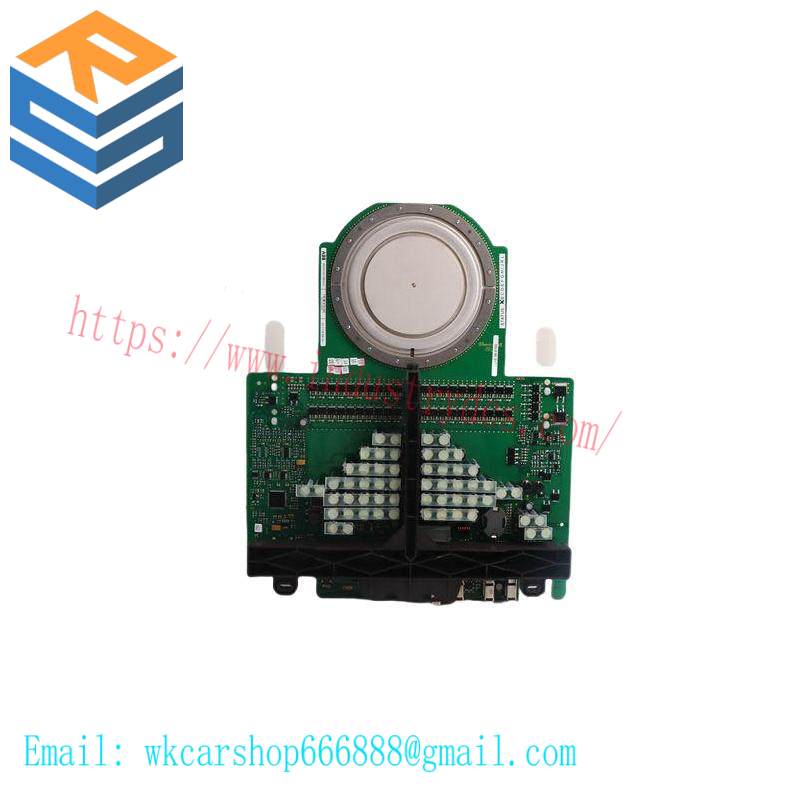

ABB 3BHE023784R0001 | 5SHY3545L0014 | IGCT Module

Type:IGCT Module

Model Number:3BHE023784R0001 / 5SHY3545L0014

Brand:ABB

Operating Temperature Range:-40°C to +85°C

Maximum Continuous Current:Up to 5000A

Insulation Class:F

Input Voltage Range:600V to 1200V

Control Interface:RS-485

Dimensions (WxHxD):200mm x 100mm x 100mm

Weight:1.6kg

    The ABB 3BHE023784R0001 IGCT Module is designed for high-power applications in the industrial automation sector, offering unparalleled efficiency and reliability.

    This module integrates advanced IGCT technology to provide robust power conversion capabilities, ideal for systems where precision control is paramount.

    With a maximum power rating of 14 MW and an operating frequency of up to 50 kHz, it is suitable for applications demanding high throughput and fast response times.

    Equipped with air cooling, this module ensures stable performance under various operating conditions without the need for additional cooling systems.

    Crafted from high-grade materials, it boasts durability and reliability, making it a preferred choice for long-term industrial use.

    Compliance with CE, UL, and ISO 9001 standards guarantees its safety and quality, ensuring seamless integration into existing industrial infrastructure.
