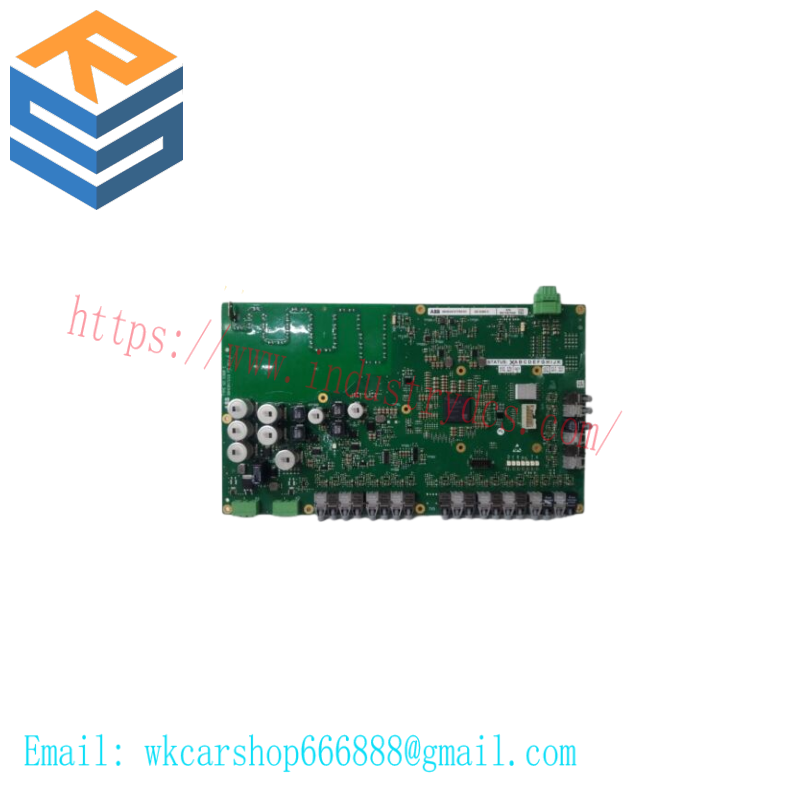

ABB 3BHE047217R0101 GD D360 C High-Voltage Inverter Board

Model Number:3BHE047217R0101

Series:GD D360 C

Module Type:High Voltage Inverter Board

Operating Voltage Range:3kV – 15kV

Input Frequency:47Hz – 63Hz

Output Current Capacity:Up to 1200A

Control Method:PWM Modulation

Insulation Resistance:≥ 10MΩ

Environmental Temperature Range:-20°C to +50°C

Protection Class:IP20

Weight:Approximately 25kg

Certification:ISO 9001, CE, UL

    Engineered for seamless integration into high-voltage industrial systems, this ABB inverter board ensures optimal performance and reliability under demanding conditions.

    Featuring advanced semiconductor technology, it delivers superior power conversion efficiency, minimizing energy loss and maximizing operational cost savings.

    Designed with state-of-the-art insulation materials, the board is capable of withstanding extreme temperature fluctuations without compromising safety or performance.

    The inclusion of a comprehensive set of diagnostic tools facilitates real-time monitoring and predictive maintenance, enhancing system uptime and reducing downtime.

    Compliant with international safety standards, this inverter board is suitable for a wide range of industrial sectors including manufacturing, mining, and renewable energy, ensuring safe and efficient operation in various environments.
