Product Type:Analog Output Module
Manufacturer:ABB
Model Number:DSQC101
Output Channels:4 channels
Signal Range:+-10V
Resolution:12-bit
Isolation:Galvanically isolated channels
Maximum Load Resistance:1000 Ohms
Operating Voltage:10…30V DC
Operating Temperature Range:-25°C to +60°C
Dimensions (D x H x W):102 x 19 x 45 mm
Weight:0.3 kg

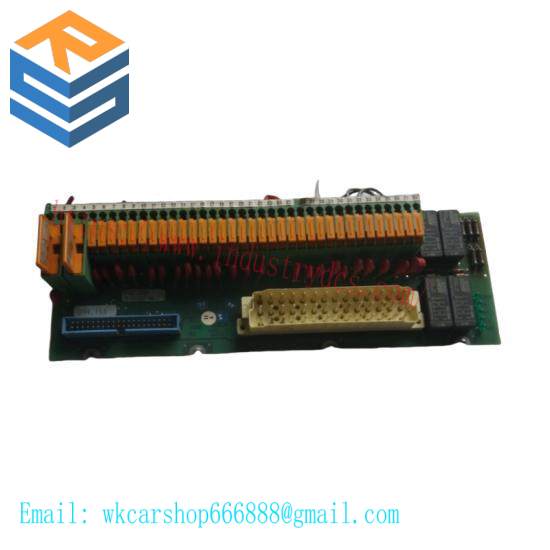

The ABB DSQC101 is a versatile and robust I/O module that enhances the capabilities of industrial automation systems with its compact design and comprehensive connectivity options.
Equipped with 16 inputs and 16 outputs, this module supports a wide range of signals, making it suitable for various applications in manufacturing, process control, and robotics.
Featuring a high-quality RS-485 interface, the DSQC101 ensures reliable data transmission over long distances, reducing the need for additional components and simplifying system setup.
Operated within a temperature range from -25°C to +60°C, this module maintains consistent performance under challenging environmental conditions, ensuring dependability in diverse industrial settings.
With its compact size measuring 100mm x 100mm x 55mm and a maximum power consumption of 2W, the ABB DSQC101 is an efficient solution for space-constrained automation systems, minimizing energy usage without compromising on functionality.
Designed with durability and ease of integration in mind, the DSQC101 is compatible with leading automation platforms, facilitating quick deployment and integration into existing systems.
