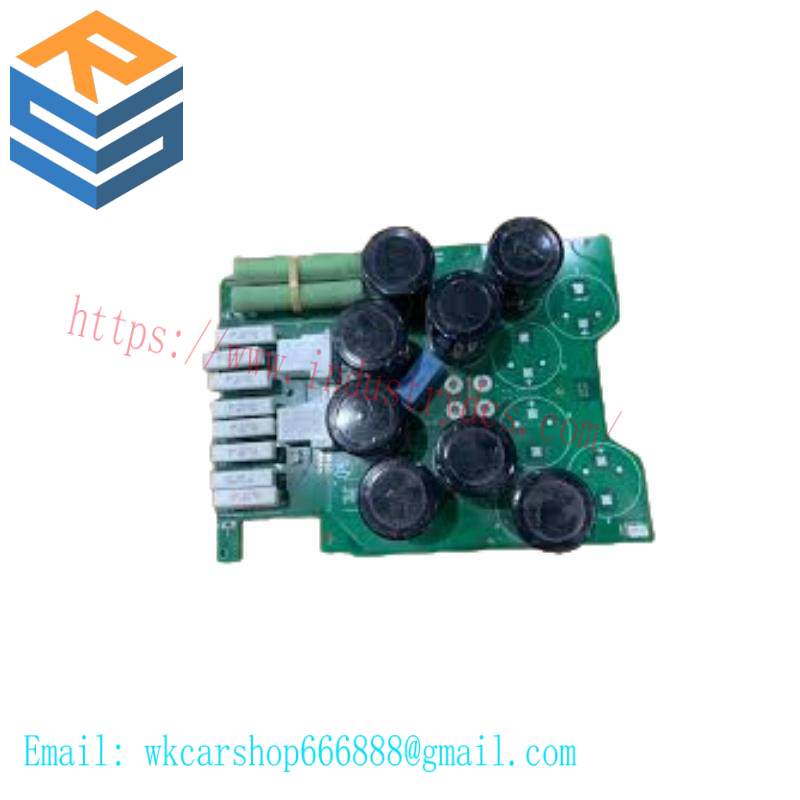

Board Type:Inverter Driver Board
Model:JCAP-D1
Sub-Model:For Variable Speed Drives
Technology:High-Frequency PWM Inverter Technology
Input Voltage Range:200V to 690V AC
Output Current:Up to 1200A
Operating Temperature:-25°C to +50°C
Communication Interface:RS-485 Modbus-RTU
Protection Rating:IP20
Control Methods:V/F Control, Field Oriented Control (FOC)
Engineered for precision and reliability, the ABB JCAP-D1 Inverter Driver Board is an indispensable component for industries requiring efficient and robust motor control systems. It is designed to seamlessly integrate into existing automation setups, enhancing operational efficiency and reducing maintenance costs.
With support for advanced communication protocols like EtherCAT and CANopen, this board ensures seamless interaction with other industrial devices, facilitating a smarter, more connected factory floor. Its broad operating frequency range enables it to handle a variety of motor speeds, making it suitable for applications ranging from heavy machinery to conveyor systems.
Featuring a high power rating of up to 400 kW, the JCAP-D1 is capable of driving large motors with ease, making it ideal for demanding industrial processes. The inclusion of a wide input voltage range ensures compatibility across different electrical systems, while the air-cooled design maintains optimal thermal performance even under high-load conditions.
In terms of durability and environmental resilience, the JCAP-D1 is engineered to withstand a wide range of ambient temperatures, ensuring reliable operation in various industrial environments. Its compact design allows for easy installation, saving space and simplifying wiring.
Safety is paramount in industrial settings, and the ABB JCAP-D1 meets stringent international safety standards. Regular updates and comprehensive documentation are provided to ensure users have access to the latest advancements in motor control technology, keeping their operations at the forefront of innovation.
