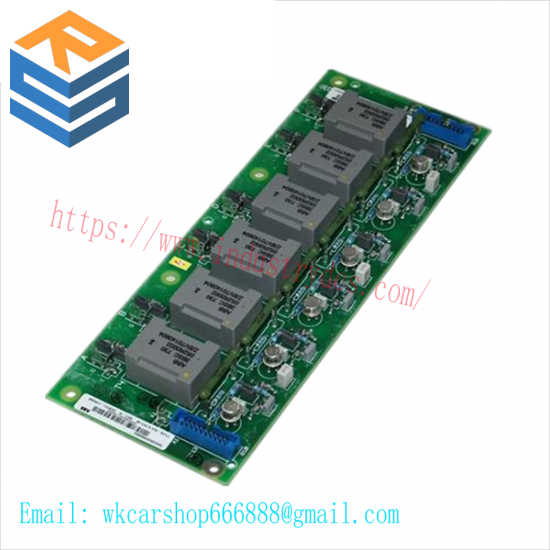

ABB SDCS-PIN-48 | 3BSE004939R2 – Precision Pulse Transformer Board

Module Type:Pulse Transformer Board

Model Number:SDCS-PIN-48 | 3BSE004939R2

Place of Origin:Sweden

Operating Voltage Range:Up to 48V DC

Frequency Response:Up to 10 kHz

Current Capacity:Up to 20 A

Insulation Resistance:≥ 10 MΩ

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:220mm x 115mm x 45mm

Weight:≤ 0.5 kg

    The ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board is meticulously designed to withstand harsh industrial environments, ensuring long-lasting reliability and performance.

    This transformer board is equipped with advanced signal processing capabilities, providing precise control signals for actuators and sensors, which is crucial for achieving optimal operation in complex automation systems.

    Engineered with a robust high-grade copper alloy, the board ensures excellent conductivity and heat dissipation, guaranteeing stable operation even under high loads and temperature variations.

    Designed with ease of integration in mind, this board is compatible with a wide range of industrial protocols and interfaces, facilitating seamless connection to various control systems without the need for additional adapters or converters.

    With its comprehensive set of certifications from leading global regulatory bodies, this ABB Pulse Transformer Board meets the highest standards for safety, quality, and compatibility, ensuring peace of mind for users in diverse industries.
