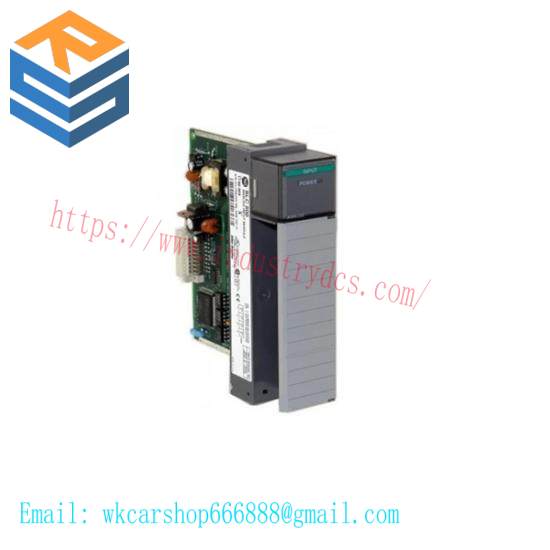

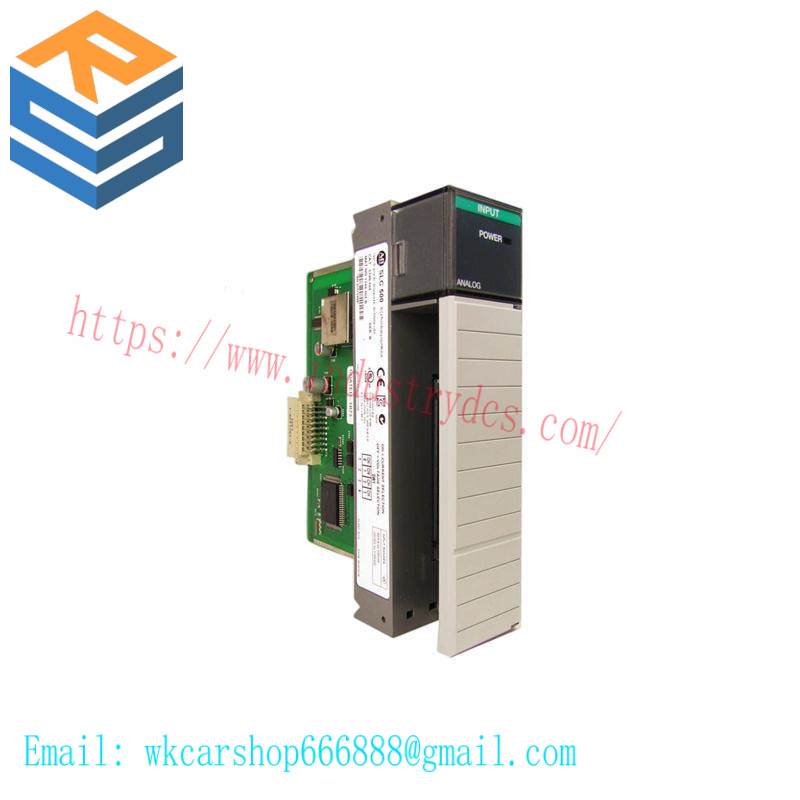

Allen-Bradley 1746-NI4 High Resolution Analog Input Module

In stock

The Allen-Bradley 1746-NI4 is a high-resolution analog input module designed for industrial automation systems. It offers precise measurement capabilities with a common mode voltage range of -20 to 20 V and an absolute input voltage range of ±7.5 VDC or 7.5 VAC RMS. This module is ideal for applications requiring accurate and reliable analog signal acquisition.

Model Type:SLC500

Model Number:1746-NI4

Manufacturer:Allen Bradley

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC

The Allen-Bradley 1746-NI4 Analog Input Module is an essential component for any advanced industrial control system, designed to enhance the accuracy and reliability of your process data acquisition. With its high-resolution capabilities, it ensures precise measurements critical for automation applications.

This module features four input channels, offering versatility for various input types. Its robust design includes overvoltage protection and backplane isolation, ensuring operational integrity even under harsh conditions. Easy installation and maintenance make it an ideal choice for upgrading existing systems or building new ones.

By integrating this module into your system, you gain access to seamless performance monitoring and control, directly enhancing productivity and efficiency. Ideal for environments requiring high precision and reliability, the Allen-Bradley 1746-NI4 stands out as a premium solution for industrial automation needs.
