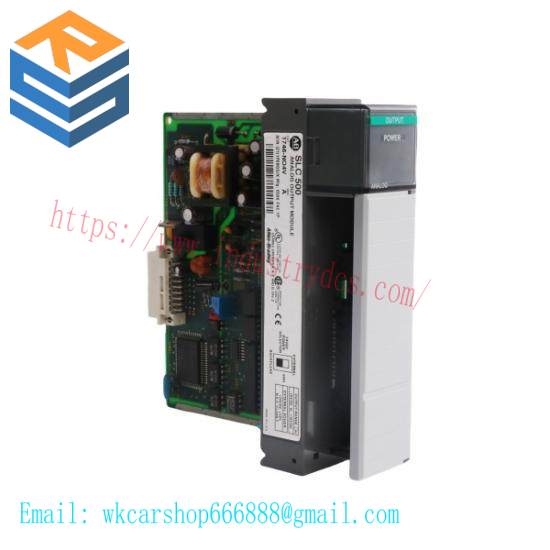

Allen Bradley 1746-NO4V SLC 500 Digital DC Output Module

Model Type:SLC 500

Model Number:1746-NO4V

Number of Channels:4

Output Range:-10 to 10 V – 1 LSB

Full Scale:10 VDC

Overvoltage Protection:7.5 VAC RMS

Input Range:-10 to 10 VDC – 1 LSB

Common Mode Voltage Range:-20 to 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Absolute Input Current:-30 To 30 MA (Maximum)

Backplane Current Draw:35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

Environmental Conditions:5 – 95%

Temperature Rating:0 – 60 DEG C

Mounting:Chassis

Processor:SLC 500

    The Allen Bradley 1746-NO4V Digital DC Output Module is a high-resolution component designed for precision control applications. It seamlessly integrates with Allen Bradley’s SLC 500 system, providing reliable and accurate output signals.

    Each channel is equipped with robust protection mechanisms against overvoltage, ensuring safety and longevity. The module supports both common mode voltage ranges and absolute input voltage specifications, making it versatile for a wide range of industrial environments.

    Featuring a backplane current draw of 55 mA, this module ensures efficient power distribution within the system. The output range of -10 to 10 VDC provides flexibility for interfacing with various types of devices and systems.

    With its open type enclosure, the 1746-NO4V is suitable for both indoor and outdoor applications, thanks to its wide operating temperature range from 0 to 60 degrees Celsius. It’s an ideal choice for installations where reliability and durability are paramount.

    Designed with user convenience in mind, the Allen Bradley 1746-NO4V Digital DC Output Module is easy to install and integrate into existing systems, thanks to its compatible mounting options and straightforward programming interface.
