Model Type:ControlLogix
Model Number:1756-CNBD
Manufacturer:Allen Bradley
Communication Protocol:DeviceNet
Number of Channels:Redundant
Isolation Level:30 V (Continuous)
Current Rating:Drawn: 970 mA at 5.1 VDC, 1.7 mA at 24 VDC
Enclosure Type:Open Type
RFI Suppression:Radiated: 10 V/M with 1 KHz sine-wave 80% AM from 80-2000 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 900 MHz, 10 V/M with 200 Hz 50% pulse 100% AM at 1890 MHz, 3 V/M with 1 KHz sine-wave 80% AM from 2000-2700 MHz
Conducted EMI:10 VRMS with 1 KHz sine-wave 80% AM from 150 KHz-80 MHz

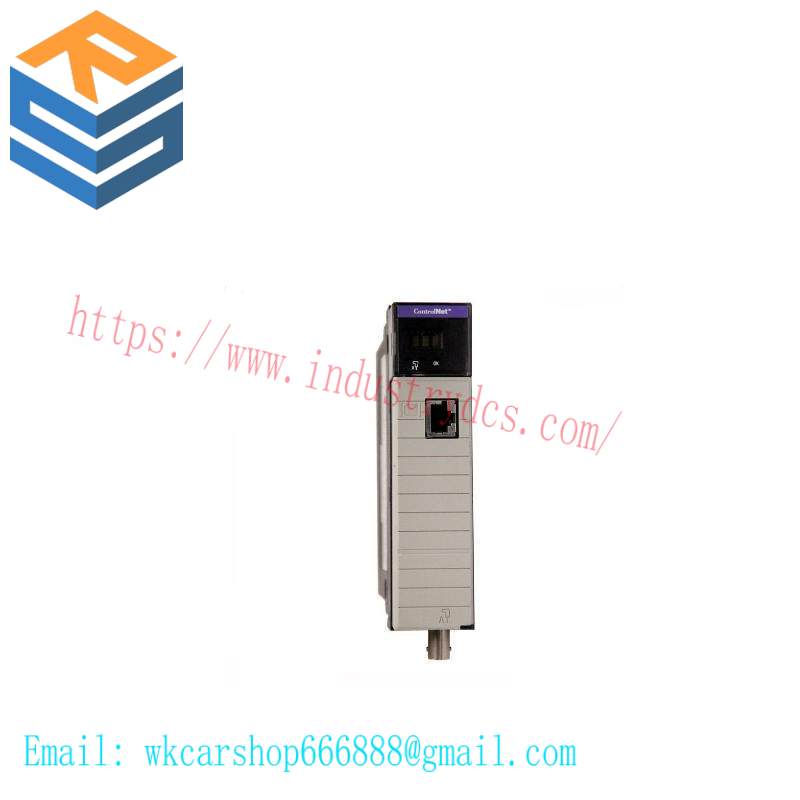

The Allen Bradley AB 1756-CNB/D ControlLogix Bridge Module is engineered for unparalleled performance in industrial automation environments. It seamlessly bridges the gap between ControlLogix systems and ControlNet networks, ensuring reliable and high-speed data communication.
With its robust design, the module offers a current rating that meets the stringent requirements of modern industrial applications, supporting efficient operation under varying conditions.
Featuring advanced isolation technology, this module ensures protection against electromagnetic interference, maintaining system integrity and enhancing operational reliability.
The open-type enclosure facilitates easy installation and maintenance, while its compatibility with a wide range of operating temperatures ensures versatility across diverse industrial settings.
Designed with user-friendliness in mind, the Allen Bradley AB 1756-CNB/D ControlLogix Bridge Module simplifies integration into existing control systems, streamlining automation processes and boosting productivity.
