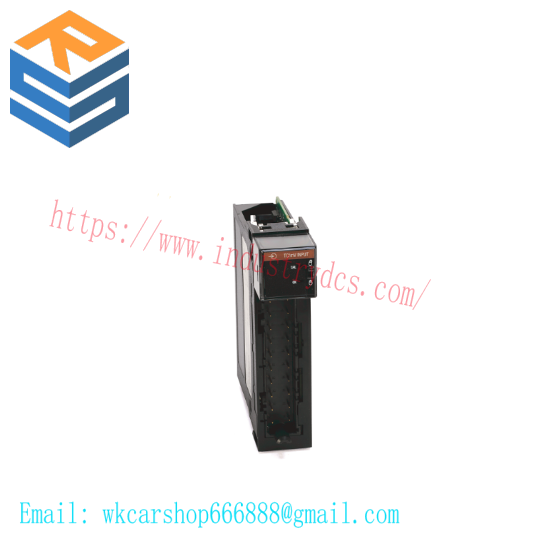

Allen Bradley 1756-IT6I2 ControlLogix Input Module: Advanced Analog Input Solution

Model Type:ControlLogix

Manufacturer(s):Allen Bradley

Input Channels:16

Input Types:Single-ended and Differential

Signal Acquisition:Versatile for current and voltage signals

Communication Protocol:ControlNet Bridge

Power Consumption:Minimal power draw for energy efficiency

Operating Temperature:-40°C to +70°C

Environmental Resistance:IP20 rated enclosure for industrial environments

Dimensions:Compact design for efficient installation

Weight:Lightweight for easy handling

    The Allen-Bradley 1756-IT6I2 ControlLogix Analog Input Module offers high precision and reliability in industrial automation applications. It is equipped with 16 channels, comprising 8 single-ended inputs and 8 differential inputs, providing flexibility for various measurement needs.

    Designed for optimal performance across a wide temperature range from -40°C to +70°C, this module ensures stable operation under extreme conditions. Its robust construction and IP20 environmental rating make it suitable for industrial settings where dust and debris may be present.

    Featuring a 100ms sampling rate, the 1756-IT6I2 ensures real-time monitoring and control of processes, enhancing operational efficiency. The module’s compatibility with the ControlNet communication protocol facilitates seamless integration within the ControlLogix family, allowing for advanced networking and data exchange.

    With its low power consumption of 1.5W, the Allen-Bradley 1756-IT6I2 is energy-efficient, reducing operational costs while maintaining high performance standards. The use of a 36-pin terminal block simplifies installation and wiring, making the module user-friendly and quick to integrate into existing systems.

    Equipped with comprehensive protection features, including under-range and over-range detection, and wire-off detection, the 1756-IT6I2 provides safety and reliability, ensuring uninterrupted operation and minimizing potential failures. Its precision and adaptability make it an ideal choice for enhancing the accuracy and efficiency of industrial control systems.
