Operating Temperature Range:40°C to 70°C (-40°F to 158°F)
Relative Humidity:5% to 95% non-condensing
Input Voltage:120 – 240 Vrms, 1-Phase
Bus Overvoltage Protection:400 Vdc
Dimensions:7.8 x 5.68 x 3.89 inches (198.12 x 144.27 x 98.1 mm)
Power Handling Capacity:Up to 2kW
Energy Absorption Capability:51 Joules
Input Current:18 A RMS
Output Voltage:120 / 240 VAC, 3-Phase
Programmable Frequency Range:0-400 Hz
Maximum Continuous Output Current:10 A
Maximum Peak Output Current:30 A
Bus Capacitance:1880 μF
Fuse Type:FNQ-R-20 Class CC and LPJ-20SP Class J

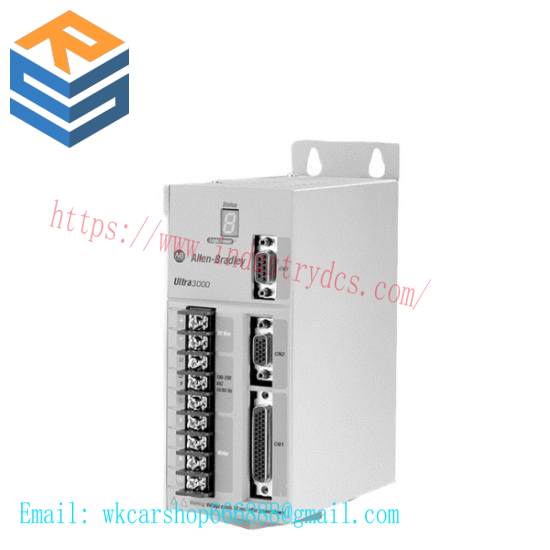

The Allen-Bradley 2098-DSD-020X is a state-of-the-art digital servo drive engineered for unparalleled performance in heavy-duty industrial settings. With a versatile design, this drive effortlessly handles a wide range of servomotor integration, ensuring precise motion control in your automation projects.
Featuring a robust Proportional+Integral+Derivative (PID) velocity regulator with a high update rate of 250 µs, the 2098-DSD-020X delivers unmatched speed and accuracy. Its Digital PID with feed-forward capability further enhances positioning capabilities, making it ideal for complex applications requiring high precision.
Equipped with 8 optically-isolated digital inputs and 4 optically-isolated N.O. relay outputs, the drive provides a comprehensive control solution. The relay outputs can handle up to 30V DC with a maximum current of 1A, offering flexibility in connecting various peripherals.
The 2098-DSD-020X is built to withstand rigorous industrial environments, boasting an impressive working temperature range of 40-70°C and a relative humidity limit of 5-95% without condensation. This ensures reliable operation even in challenging conditions.
For added safety and efficiency, the drive is equipped with (LPJ-20SP) Class J and (FNQ-R-20) Class CC fuses, along with a 5V Auxiliary Logic supply. Its energy absorption capability of 51 Joules protects against overvoltages, safeguarding your system and ensuring uninterrupted operation.
