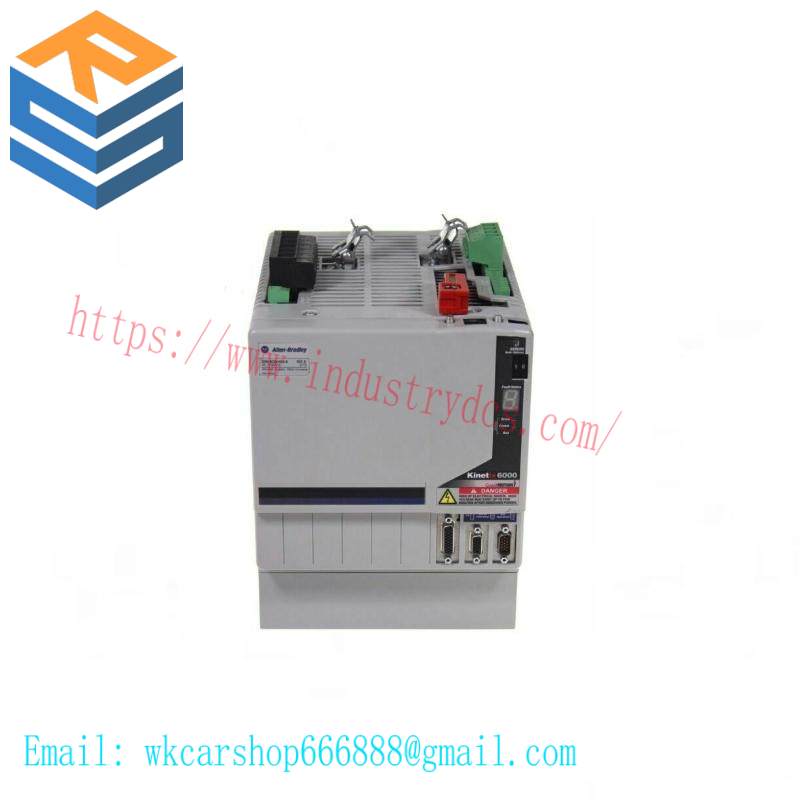

Allen-Bradley AB 2094-BC04-M03-M Integrated Axis Module

Class:400VAC

Continuous Current (rms):21.2 Amperes

Peak Current (rms):53.0 Amperes

Efficiency (%):98%

Short-circuit Current Rating (rms) Symmetrical:200,000 A

Safe Torque-off Feature:Integrated

Operating Temperature Range (°C):0…50

Relative Humidity (Noncondensing):5…95%

Operating Altitude (meters):Similar to other Kinetix module

Vibration Rating (Hz):5…55 @ 0.35 mm (0.014 in.) double amplitude

    Engineered for maximum efficiency and reliability, the Allen-Bradley AB 2094-BC04-M03-M is an integral part of the Kinetix Multi-Axis Drive family, offering seamless integration with a wide range of industrial applications.

    This module is designed to host major field connections including Contactor enable (CED) connector, DC bus/AC input power (IPD) connector, Control power (CPD) connector, Motor power (MP) connector, Motor/resistive brake (BC) connector, and I/O (IOD) connector, ensuring comprehensive functionality.

    Featuring a robust and compact design, the AB 2094-BC04-M03-M is capable of interfacing with both rotary and linear motors through feedback cables, enhancing its versatility in various automation scenarios.

    With an impressive efficiency of 98%, this integrated axis module ensures minimal energy loss, contributing to cost savings and environmental sustainability in industrial operations.

    Equipped with a Safe Torque-off feature, the module guarantees safety during unexpected shutdowns or maintenance procedures, minimizing downtime and ensuring workplace safety.
