Product Type:Axis Controller Module
Counter Resolution:24 bit
Inputs:HEDL (HP / AVAGO interface) / RS422
Encoder Power Supply:+5 V or +15 V selectable with jumper
Output Voltage:Low: 0 to 2 V, high: 3 to 34 V, Imax = 10 mA
Voltage Range:18 to 34 VDC
Stepper Motor Module Features:2x Out 150kHz, 2x In INC, 1MHz, RS422, 8x DI 24V, linear/sine²/parable acceleration modes, without power amplifier, encoder supply 5/15V

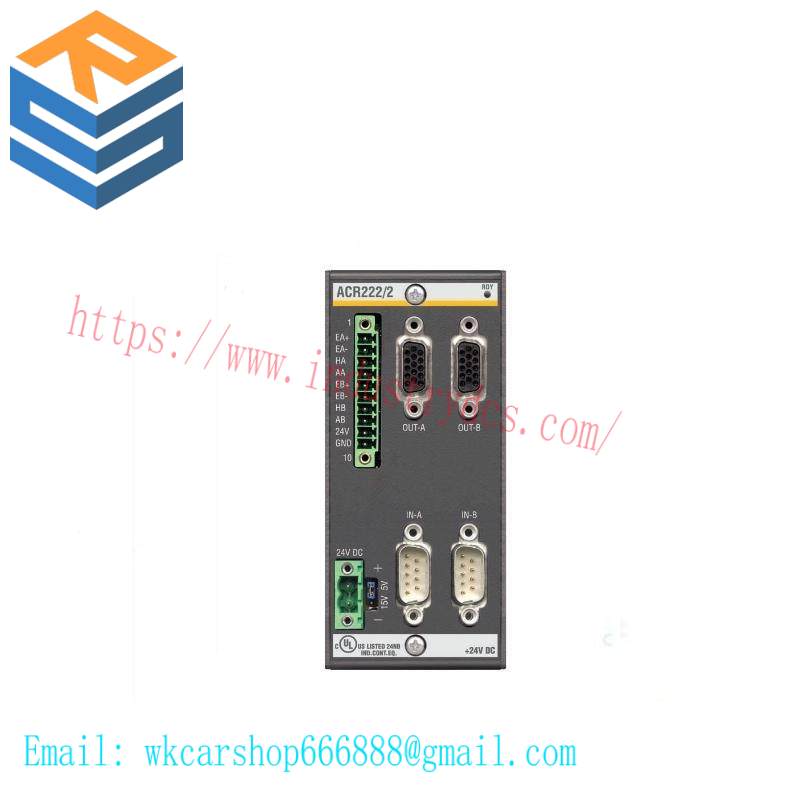

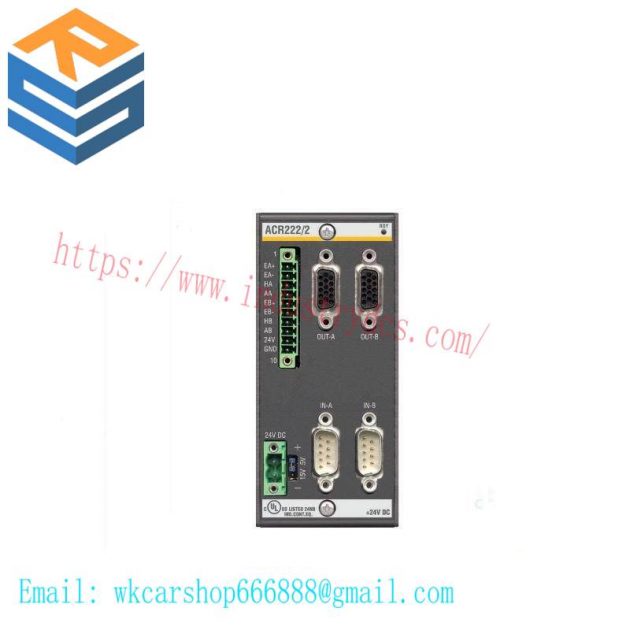

Experience unparalleled precision in your motion control applications with the BACHMANN ACR222/2 Axis Controller Module. Designed for high-performance stepper motor control, this module ensures smooth operation across a wide range of industrial automation tasks.
Equipped with a 24-bit counter resolution, it offers exceptional accuracy in tracking and position control. The dual input configurations support a variety of encoder types, enhancing its versatility in different applications.
With customizable encoder power supply, the module accommodates diverse electrical systems, ensuring seamless integration with your existing infrastructure. Its output voltage flexibility allows for optimal control over stepper motors and other devices, delivering consistent performance.
Featuring 2x outputs at 150kHz and 2x inputs for INC commands, along with an RS422 interface, this module provides a robust communication backbone for efficient data transfer and control signals. The inclusion of 8 digital inputs ensures connectivity with a wide array of sensors and switches.
The module supports various acceleration modes, including linear, sine squared, and parabolic profiles, allowing for fine-tuning to match specific application requirements. Its compact design and compatibility with stepper motors without a power amplifier make it a space-efficient solution for your control systems.
