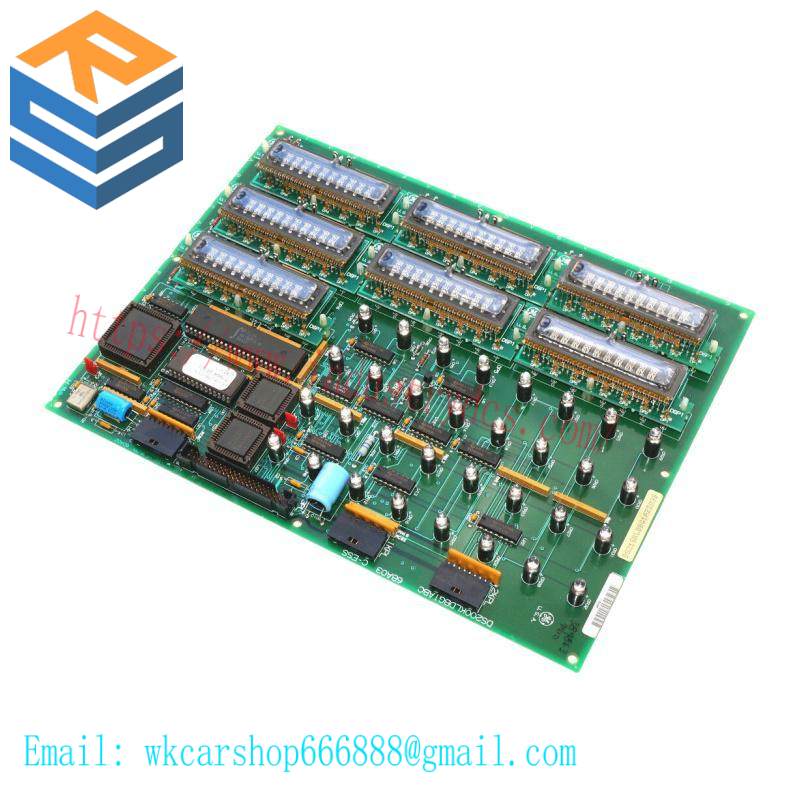

GE DS200KLDBG1ABC Key LED Display Board for Mark V Series

Manufacturer:GE Motors & Industrial Systems

Model:DS200KLDBG1ABC

Series:Mark V

Board Connectors:Two vertical pin components

Jumper Switches:Two jumper switches

Capacitors, Diodes, Resistors:Various for voltage limiting and consumption

LED Displays:Seven, using sixteen-segment digits

Board Markings:C-ESS, 6BA01

Drilled Corners and Edges:Present

    The DS200KLDBG1ABC is an advanced Key LED Display Board meticulously crafted by GE Motors & Industrial Systems for the Mark V Series. This board is designed to provide precise numerical display using seven high-quality LED displays, each utilizing sixteen-segment digits for clear visibility. It features two vertical pin components, enhancing its versatility and functionality. Additionally, the board includes two jumper switches and a variety of hardware components such as capacitors, diodes, and resistors, which are essential for managing excess voltage and ensuring optimal performance. The board is marked with distinctive codes such as C-ESS and 6BA01, making it easily identifiable within industrial control systems. With its robust design and comprehensive feature set, the DS200KLDBG1ABC is a reliable solution for applications requiring accurate digital display and voltage management. Its corners and edges are drilled for secure mounting, ensuring stability and longevity in demanding environments.
