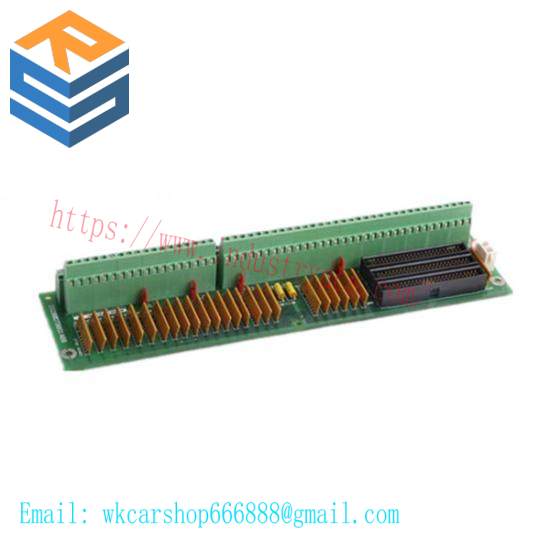

GE Fanuc DS200DTBBG1A: Advanced Terminal Digital Connector Board

Manufacturer:General Electric

Series:Mark V

Part Number:DS200DTBBG1A

Functional Acronym:DTBB

PCB Coating:Normal Coating

Functional Revision:A

Contact Input Expansion:Termination Module

Terminal Blocks:2 blocks, 95 signal wires each

Connectors:3 50-pin

Bayonet Connectors:Present

Jumpers:5 included

Voltage Limitation Components:Standard rectifiers, diodes, capacitors, integrated circuits

    Engineered for high-reliability industrial environments, the DS200DTBBG1A Terminal Digital Connector Board from GE-FANUC seamlessly integrates with existing systems to enhance operational efficiency.

    Each of the two terminal blocks offers 95 signal wire terminals, providing ample connection points for signal transmission and processing.

    Equipped with three 50-pin connectors, this board facilitates versatile connectivity options, supporting a wide range of industrial protocols and standards.

    Identified by JFF, JFG, and JFH, the connectors ensure compatibility with specific applications, optimizing system integration.

    Bayonet connectors on the board offer secure and quick connection solutions, ensuring reliability even under harsh conditions.

    The inclusion of 5 jumpers allows for customization and fine-tuning of electrical circuits, catering to diverse operational needs.

    Manufactured with advanced materials, the DS200DTBBG1A is designed to withstand extreme temperature ranges from -40°C to +70°C, ensuring stable performance across varied industrial settings.
