Product Model:745-W2-P5-G5-HI-A-E-H
Windings Per Phase:2
Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum
Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA
Maximum Continuous Voltage Output:273 V
Display Type:40 character Enhanced LCD
Dimensions:Height: 9″, Width: 7″, Depth: 7 ⅛”
Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

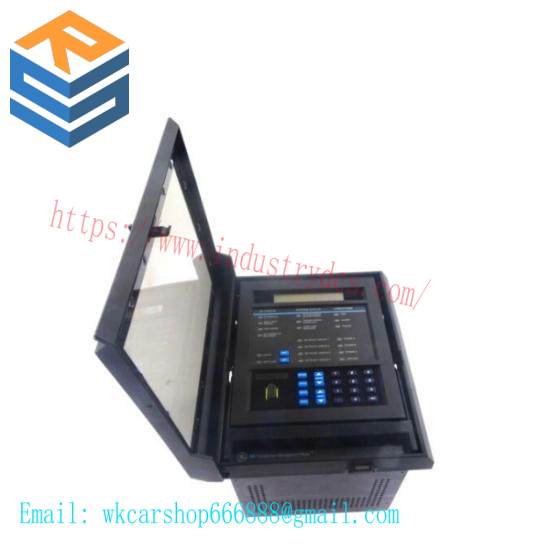

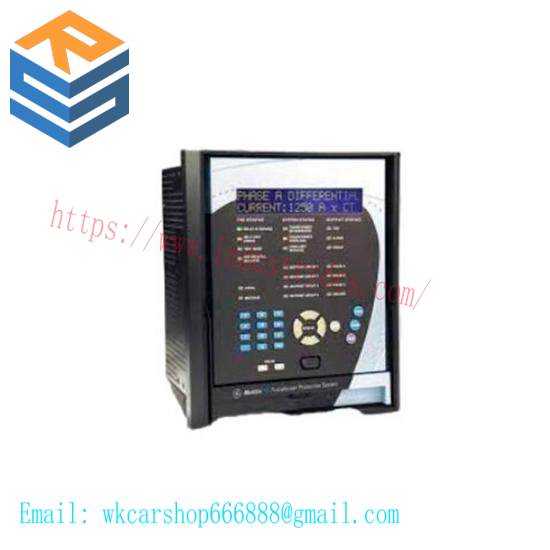

The GE SR745-W2-P5-G5-HI is an enhanced model of General Electric Multilin’s 745 series, meticulously designed to manage and safeguard transformers, autotransformers, and reactors. Its advanced features minimize strain on transformer elements, extending the life of your electrical systems.
Equipped with a large 40-character display and an expanded keypad, this system allows for easier manual entry of setpoints, streamlining operations and improving efficiency. The compact design, measuring 9 inches in height, 7 inches in width, and 7 ⅛ inches in depth, makes it ideal for mounting on standard 19-inch panels.
The system features a robust housing that ensures durability in operational environments. The front of the case includes several LEDs that provide real-time alerts for various statuses and errors, enabling quick troubleshooting and maintenance.
With a wide range of control power options from 90 to 300 V DC and 70 to 265 V AC at 48 to 62 Hz, the GE SR745-W2-P5-G5-HI offers versatility for different applications. The maximum continuous voltage output of 273 V ensures reliable performance under varying conditions.
Installation and maintenance are made straightforward with detailed documentation that covers all necessary steps. The SR745 series chassis provides additional protection during the draw-out process, ensuring long-lasting reliability in harsh industrial environments.
