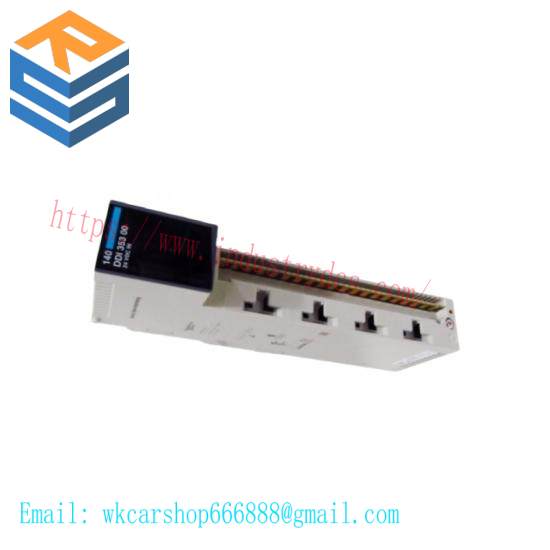

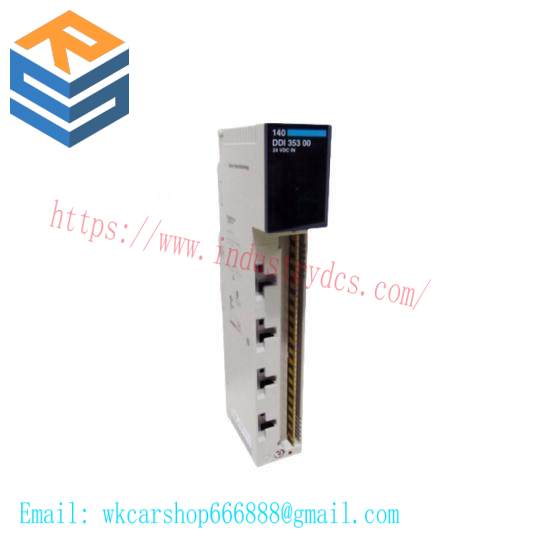

Product Type:Discrete Input Module
Model Number:140DDI35300
Module Manufacturer:Schneider Electric
Automation Platform:Modicon Quantum
Discrete Input Channels:32
Group of Channels:4
Input Voltage:24 V DC
Input Voltage Limits:19.2…30 V
Input Impedance:2500 Ohm
Maximum Leakage Current:200 mA at Us = 5.5 V and Uin = 4 V
Absolute Maximum Input:30 V continuous, 56 V during 1.3 ms decaying pulse
Power Dissipation:1.7 W + (0.36 x number of points on)
Bus Current Requirement:330 mA
Product Weight:0.66 lb (US) (0.3 kg)
The Schneider 140DDI35300 Quantum PLC Discrete Input Module is a critical component for modern industrial control systems, offering high reliability and efficiency in managing 24V DC signals.
Engineered for the Modicon Quantum automation platform, this module supports a comprehensive array of 32 discrete input channels, grouped into four distinct channels for optimized system scalability.
With an input voltage range of 19.2 to 30V DC, this module ensures compatibility with a wide variety of industrial applications, ensuring robust performance under diverse conditions.
Featuring a maximum leakage current of 200 mA at specific voltage levels, it ensures minimal interference and maintains signal integrity, critical for precision control systems.
The Schneider 140DDI35300 is designed with a focus on energy efficiency, featuring a power dissipation rating that scales according to the number of active input points, reducing unnecessary power consumption.
Easy integration into existing systems, thanks to its compatibility with the Modicon Quantum platform, makes this discrete input module a seamless addition to any industrial automation setup.
