Extended Product Type:PLC
Product ID:BMXDDM16022H
Schneider Type Designation:Discrete Mixed I/O Module
Main Function:I/O Unit
Functions:Digital Input/Output Control
Supply Voltage:(DC) 24 V
Current Consumption:(3.3Vdc) 0.1 A
Resistance to Harsh Environment:Conformal Coated PCB
Discrete Input Voltage:24 V DC Positive
Discrete Output Voltage:24 V 19…30 V DC
Power Dissipation:<= 3.7 W
Current Consumption (DC):<= 111 mA at 3.3 V, <= 67 mA at 24 V
Product Weight:0.115 kg

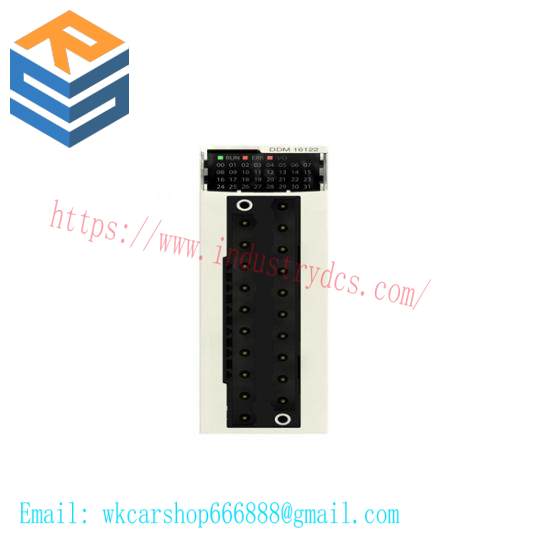

Integrating seamlessly with Schneider’s Modicon M340 X80 PLC system, the BMXDDM16022H discrete mixed I/O module is engineered to elevate operational efficiency. With 8DI (digital inputs) and 8DO (solid-state outputs), this module ensures reliable control over industrial processes.
Its conformal coated PCB design guarantees resilience against harsh environments, making it suitable for applications requiring robust performance under challenging conditions.
Equipped with a supply voltage of 24VDC, this module ensures stable operation across various industrial settings. The current consumption is optimized for efficient energy use, with specific values tailored for different voltage levels, ensuring minimal power loss.
The BMXDDM16022H offers a maximum power dissipation of <= 3.7W, ensuring it operates within safe thermal limits even during high-demand periods. Its lightweight design (0.115kg) facilitates easy installation and maintenance.
This discrete mixed I/O module from Schneider Electric is a testament to precision engineering and reliability, providing a critical interface between the physical world and digital control systems in industrial automation.
