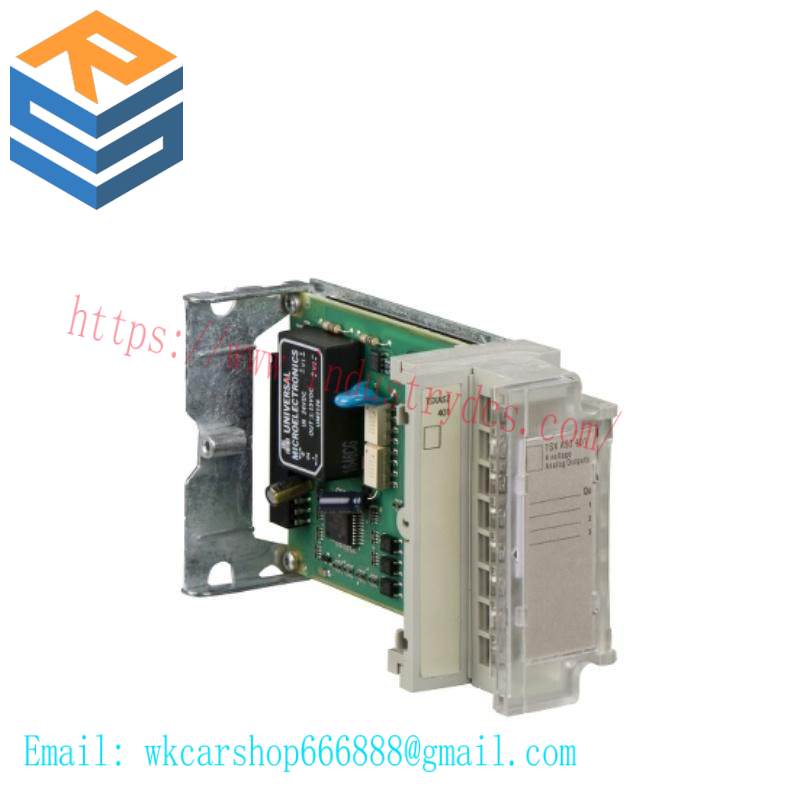

Schneider TSXASZ401: 4-Channel Analog Output Module, Designed for Precision Control

Product Type:Module

Product ID:TSXASZ401

Automation Platform:Modicon TSX Micro

Component Type:Analog Output Module

Number of Channels:4

Output Type:0…10 V, ±10 V

Current Consumption:90 mA

Product Weight:0.44 lb (US) (0.2 kg)

Ambient Temperature:+50°C

Overall Dimensions:Width: 239mm, Length: 90mm, Depth: 194mm

Control Panel:Yes

Drive Type:Variable Speed

Field Bus Communication:FC Protocol, Modbus RTU

Filter:Included

Function:Motor Control

Special Features:Excellent Reliability, Integrated Braking Chopper, User-Friendly

Standards Met:ISO 14001, RoHS, WEEE

IP Rating:IP20

Mounting Type:Panel Mount

    The Schneider TSXASZ401 module is designed to deliver exceptional performance and reliability in a compact, modular format. It’s ideal for applications requiring precise analog control over a wide range of industrial processes.

    With its robust construction and advanced features, this module ensures smooth operation under varying environmental conditions, making it a preferred choice for engineers seeking high-quality, versatile solutions.

    Key highlights include an efficient current consumption of 90 mA, which minimizes energy loss, and an ambient temperature rating of up to +50°C, ensuring reliable performance even in hot environments.

    Equipped with field bus communication capabilities using FC protocol and Modbus RTU, this module seamlessly integrates with various automation systems, facilitating easy data exchange and control.

    The inclusion of a braking chopper enhances safety by reducing motor speed, minimizing the risk of sudden movements during system shutdowns. Its user-friendly interface simplifies setup and operation, making it accessible to technicians and engineers alike.
