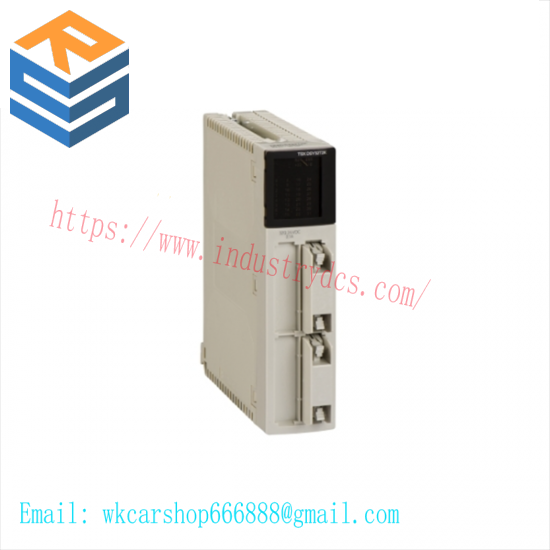

Schneider TSXDSY64T2K Discrete Output Module

Extended Product Type:Discrete Output Module

Product ID:TSXDSY64T2K

Schneider Type Designation:Module

Product Category:Schneider PLC

Discrete Output Number:64

Discrete Output Type:Solid State

Protected Discrete Output Voltage:24 V DC Positive

Conforming to EN/IEC 61131-2 Standards:19…30 V Current per Channel

Current per Channel Power Dissipation:(2.4 W + 0.1 W x No of Outputs)

Electrical Connection:4 Connectors HE-10

Current Consumption at 5 V DC:155 mA

Product Weight:0.79 lb (US) (0.36 kg)

    The Schneider TSXDSY64T2K Discrete Output Module is engineered to deliver unparalleled performance in harsh industrial environments. With a high number of channels and exceptional current handling capacity, it enables precise control over electrical loads, making it ideal for applications requiring simultaneous operation of multiple devices.

    Featuring advanced relay technology, this module ensures rapid switching with minimal response time, ensuring system efficiency and reliability. Its wide operating temperature range (-25°C to +70°C) guarantees continuous performance in diverse environmental conditions, enhancing its versatility across various industries.

    The module’s robust design and IP20 protection class provide durability against dust and light water splashes, ensuring longevity even in demanding environments. Its terminal block connection facilitates easy installation and integration with existing control systems, streamlining the setup process.

    For applications requiring high power output, each channel can handle up to 1kW, allowing for the direct control of heavy loads without the need for additional power management components. This capability significantly reduces system complexity and cost, contributing to a more efficient and cost-effective solution.

    In summary, the Schneider TSXDSY64T2K Discrete Output Module combines advanced technology, high performance, and user-friendly design to offer an optimal solution for industrial automation, supporting a wide range of applications from manufacturing to process control.
