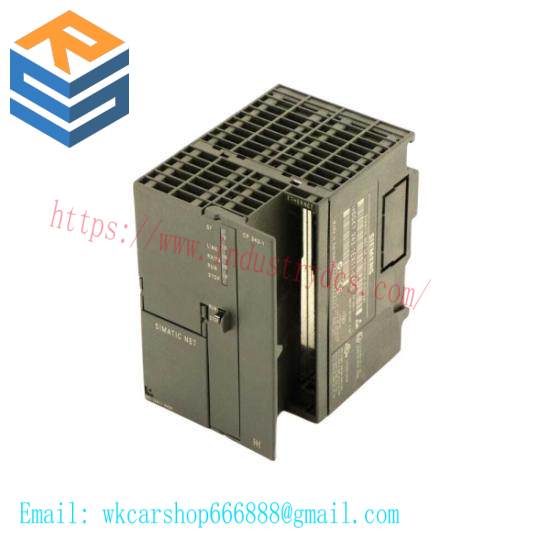

SIEMENS CP 343-1 Ethernet Communication Module, 6GK7343-1EX11-0XE0

Model Type:Communication Processor

Model Number:6GK7343-1EX11-0XE0

Manufacturer:SIEMENS

Net Weight:0.299 kg

Packaging Dimension:13.20 x 14.80 x 5.10 cm

Communications Interface:Industrial Ethernet

Protocol Compatibility:[“TCP/IP”,”UDP”,”Multicast”]

Communication Modes:[“SEND/RECEIVE”,”Fetch/Write”,”S7 Communication (Server)”]

PROFINET Integration:Integrated 2-Port Switch ERTEC 200

Module Replacement:Compatible with SIMATIC S7-300 without PG initialization

Diagnostics:SNMP diagnostics via LAN

Network Connections:2x RJ45 connections for 10/100 Mbit/s

Configuration:IP configuration via DHCP or Block

Access Control:IP Access Control List

Time Synchronization:Supports time synchronization

Extended Diagnostics:Fast Startup, extended web diagnostics, PROFIenergy support

    The SIEMENS CP 343-1 Ethernet Communication Module is a compact and efficient solution for connecting SIMATIC S7-300 controllers to industrial Ethernet networks. It ensures high-speed and reliable data transfer, critical for modern automation systems.

    Featuring dual 10/100 Mbit/s Ethernet interfaces, the module supports both TCP/IP and UDP protocols, enabling versatile communication within the industrial environment. The integrated 2-port ERTEC 200 switch facilitates seamless connection to other devices, enhancing network efficiency.

    With support for RFC1006 and PROFINET communication, this module is compatible with a wide range of automation systems and software, making it an ideal choice for upgrading existing infrastructure or integrating new systems.

    For easy maintenance and flexibility, the CP 343-1 module allows for replacement without the need for Programming and Configuration (PG) initialization, ensuring minimal downtime and simplified system management.

    Advanced diagnostic features, including SNMP diagnostics via LAN and extended web diagnostics, provide comprehensive monitoring and troubleshooting capabilities. The fast startup feature minimizes system downtime during initial setup or recovery from faults, contributing to overall productivity and efficiency.
