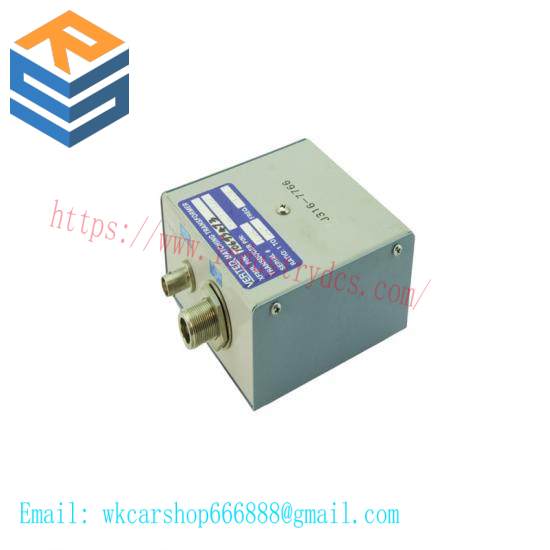

VERTEQ 1078234.5.1 – 1069347.3 Matching Transformer, Industrial Control Module

Core Material:High-grade silicon steel

Operating Frequency:20-50 Hz

Max Input Power:5000 W

Output Voltage Range:120 V – 480 V

Insulation Class:Class H (180°C)

Dimensions (L x W x H):200 mm x 100 mm x 50 mm

Net Weight:2.5 kg

    This VERTEQ matching transformer is engineered for applications where precise impedance matching is critical, offering unmatched reliability and performance in high-frequency circuits.

    Featuring a high-grade ferrite core, it ensures superior magnetic properties, minimizing power loss and enhancing efficiency.

    With an insulation resistance rating of ≥10MΩ at 500VDC, this transformer guarantees robust electrical isolation, safeguarding sensitive components against potential damage.

    Operating within a wide temperature range from -40°C to +85°C, it is designed to withstand harsh environments, ensuring consistent performance across various industrial settings.

    Equipped with a 50W power rating and capable of handling frequencies between 400kHz and 1MHz, this transformer is ideal for demanding applications requiring high precision and stability.

    The ±1% accuracy in impedance matching ensures that it can seamlessly integrate into complex circuit designs, optimizing signal integrity and system performance.
