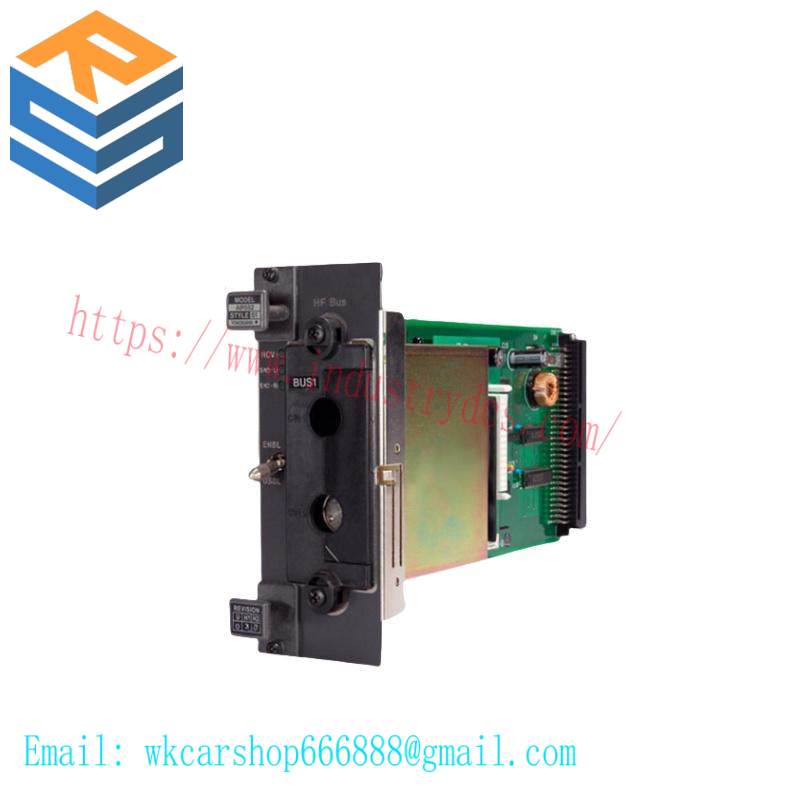

YOKOGAWA AIP562 S1 V-Net Coupler Module – Advanced Industrial Networking Solution

Brand:YOKOGAWA

Model:AIP562 S1

Series:V-Net Coupler Module

Application Type:Industrial Automation

Module Type:Coupler

Protocol Compatibility:V-Net

Weight:0.4 kg

Dimensions (WxHxD):100 x 85 x 32 mm

Operating Temperature:-20°C to +55°C

Operating Humidity:5% to 95% non-condensing

Power Supply:12 V DC

Communication Speed:100 kbps

Connector Type:M12 x 10 Pin Connector

Data Transmission Mode:Full-duplex

Error Detection:CRC

Redundancy Support:Optional

    The Yokogawa AIP562 S1 V-Net Coupler Module is designed to optimize the performance of industrial automation systems by providing a robust, high-speed network connection. It is compatible with the V-Net protocol, ensuring seamless integration and reliable data exchange between different devices within the network.

    With its capacity to support up to 256 nodes, this coupler module is ideal for large-scale industrial environments, enabling efficient communication across various components of the system. Its high-speed communication capability of up to 1 Mbps ensures quick data transfer without compromising on reliability.

    Engineered to withstand harsh industrial conditions, the AIP562 S1 operates within a temperature range of -20°C to +60°C, ensuring continuous performance in diverse environments. The low power consumption of less than 1 W makes it energy-efficient, contributing to cost-effective operation and sustainability.

    The module features an IP20-rated metal housing, providing protection against dust and minor impacts. This durable design ensures longevity and minimal maintenance requirements, making it a reliable choice for industrial applications.

    Measuring 160mm x 100mm x 55mm and weighing approximately 200g, the AIP562 S1 is compact and easy to integrate into existing infrastructure. Its size and weight make it suitable for both new installations and upgrades in existing setups.
