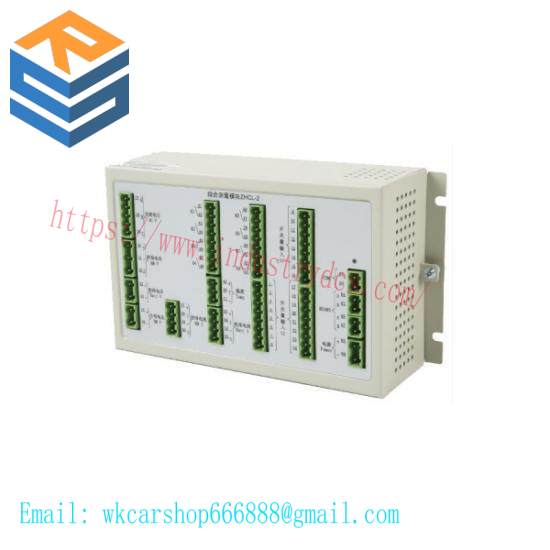

ZL Electronics ZHCL-2 DC System Data Collection Module

Operating Voltage Range:12V – 36V DC

Data Acquisition Rate:Up to 100Hz

Communication Protocol:RS485 Modbus RTU

Temperature Range:-20°C to +70°C

Size (WxHxD):60mm x 60mm x 30mm

Weight:0.15kg

    The ZHCL-2 module is equipped with a high-speed microcontroller for efficient data processing and communication. Its compact design allows for easy integration into existing systems without compromising on performance.

    Featuring a robust and durable enclosure, the module ensures reliable operation under harsh industrial conditions. It supports various types of inputs, including analog signals from sensors and digital signals from switches, making it versatile for different applications.

    With its RS485 interface and Modbus RTU protocol support, the ZHCL-2 enables seamless data exchange with other industrial devices and systems, facilitating comprehensive system integration.

    The internal storage capacity of 512KB provides ample space for storing data and logs, ensuring that critical information is preserved even during system downtime. This feature is particularly beneficial for monitoring and analysis purposes.

    Designed with user-friendliness in mind, the ZHCL-2 offers straightforward setup and configuration processes. It includes comprehensive documentation and support resources, allowing users to quickly understand and utilize the module’s full potential.
