Module Type:Digital Output
Output Points:32
Voltage Rating:12-24V DC
Power Dissipation (Max):4.8 Watts at 60 degrees Celsius
Operating Voltage Range:10-31.2V DC
Current Rating:970mA @ 5.1VDC, 1.7mA @ 24VDC
Isolation:30V (Continuous)
Enclosure Type:Open Type
Environmental Conditions:5-95% non-condensing relative humidity, 2G vibration, 30G shock
Communication Protocol:ControlNet A/B to Backplane

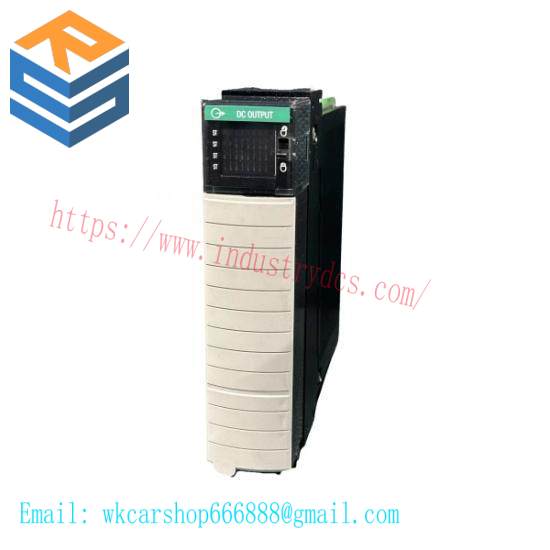

Engineered for durability and precision, the Allen-Bradley 1756-OB32 ControlLogix 32 Point Digital Output Module is a cornerstone of modern industrial automation. This module offers 32 discrete digital outputs, each capable of handling 12-24 volts DC, making it versatile for various applications from lighting control to motor speed adjustments.
With an operating voltage range of 10-31.2 volts DC, this module ensures compatibility across a wide spectrum of industrial devices. Its peak power dissipation of 4.8 watts at 60 degrees Celsius indicates its efficiency in managing energy consumption without compromising performance.
The module’s current rating of 970 mA at 5.1 VDC and 1.7 mA at 24 VDC ensures reliable operation under varying loads, providing a safety margin for different operational scenarios. The 30 V continuous isolation feature ensures data integrity and system reliability, crucial for maintaining smooth operations in complex industrial environments.
Integrated with advanced communication protocols, including ControlNet A/B to backplane and ControlNet A to Controlnet B, this module seamlessly connects with other components in the automation network, facilitating data exchange and control over the entire system.
Designed for robustness against environmental conditions, the open-type enclosure ensures protection against dust and minor impacts. Its temperature rating of 0 – 60 DEG C allows for deployment in diverse climates, enhancing its adaptability across global industries.
